67g Tank Build!

R

Reefer08

Member
#1
Joined
May 12, 2008
Messages
1,839
Likes
8
Points
38
Location
Diamond Bar
#1
Tank:

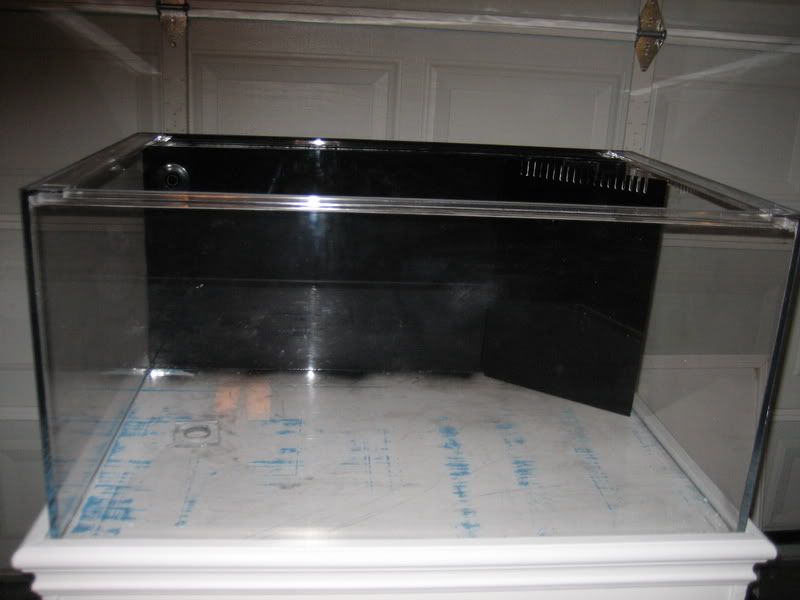

1/2" Acrylic 36"x24"x18"
1" Eurobracing
1" drain with durso standpipe
1" return. Return is on the left upper corner.
Corner Black Triangle overflow with cover
Black Background

Sump:

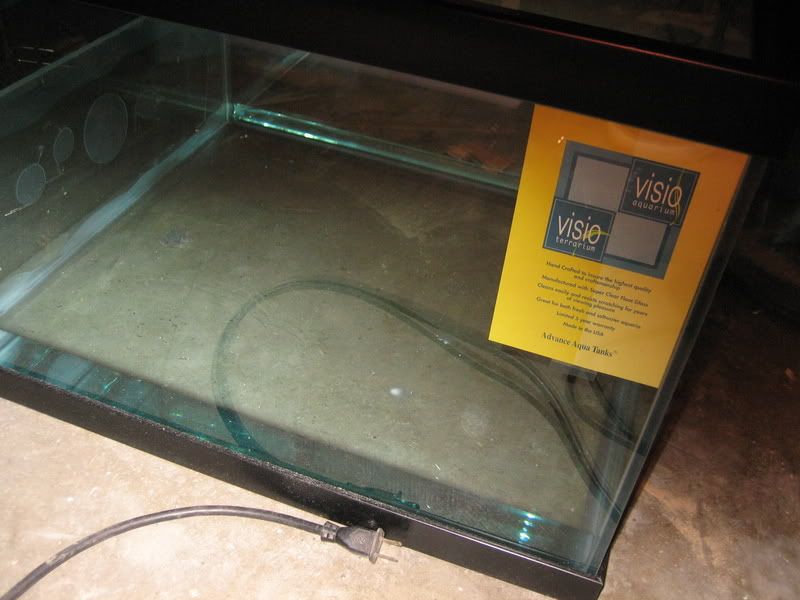

Custom Visio 35"x19"x16" 3 Baffles
No Refugium

Controller
Reef Keeper Lite Level 3

Stand:
36 Inch Tall
3 Doors
Semi-gloss white
Made by me!


Canopy:
36x24x12 Semi-Gloss White Floating!
Made by me!

Sand:
80lbs CaribSea Fiji Pink

Skimmer:
Warner Marine AS200

Lighting:
250w DE Lumenbright
Lumatec Digital ballast
14k Hamilton Bulb

2x39w 36 inch T5's
ATI Blue Plus bulbs
Icecap SLR Reflectors


Water Movement:
2 Sure-Flow Maxi Jets (2100 GPH each)
Koralia 3 (850)

Water Top-Off:
JBJ Auto Top off connected to a 65g barrel.

Calcium/Alkalinity:
GEO Calcium Reactor
JBJ Regulator.
5lb Tank.
Large Grain Media. (Thanks Paul for hooking it up).


Here is a pic of my stand, more pics to follow.


Last edited:
EyeReef

EyeReef

Admin
admin
Supporter
#5
Joined
May 25, 2007
Messages
5,574
Likes
284
Points
83
Location
San Diego
My Tank Build
#5
very nice...what are you planning to keep in there fish and coral wise?

R

Reefer08

Member
#9
Joined
May 12, 2008
Messages
1,839
Likes
8
Points
38
Location
Diamond Bar
#9
Hopefully this weekend I will add the water and corals. I will be relocating everything from my current tank all into this. I still need to figure out how im going to haul the stand into my bedroom, **** thing is so heavy.

R

Reefer08

Member
#10
Joined
May 12, 2008
Messages
1,839
Likes
8
Points
38
Location
Diamond Bar
#10
I just bought my new skimmer today! I decided on the Warner Marine AS200. I am really impressed with the build quality on this skimmer and think Ive gone with the best choice with my budget. Im so glad I didn't buy the Octopus.

I will temporarily place this skimmer on my current display tank until ive finished with the canopy and the build of the 67g in my bedroom.

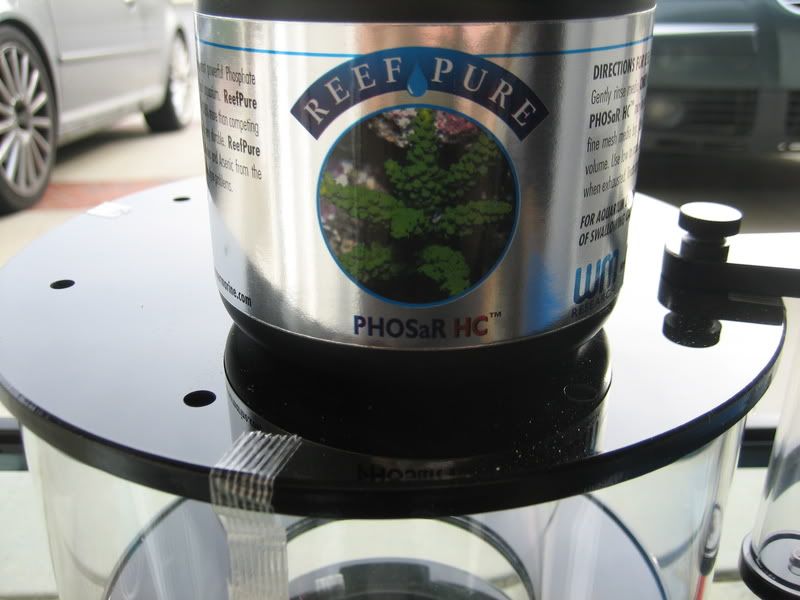

I will also be trying out the new High capacity phosphate remover Phosar from WM.

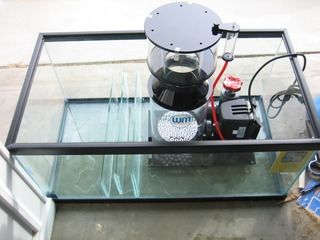

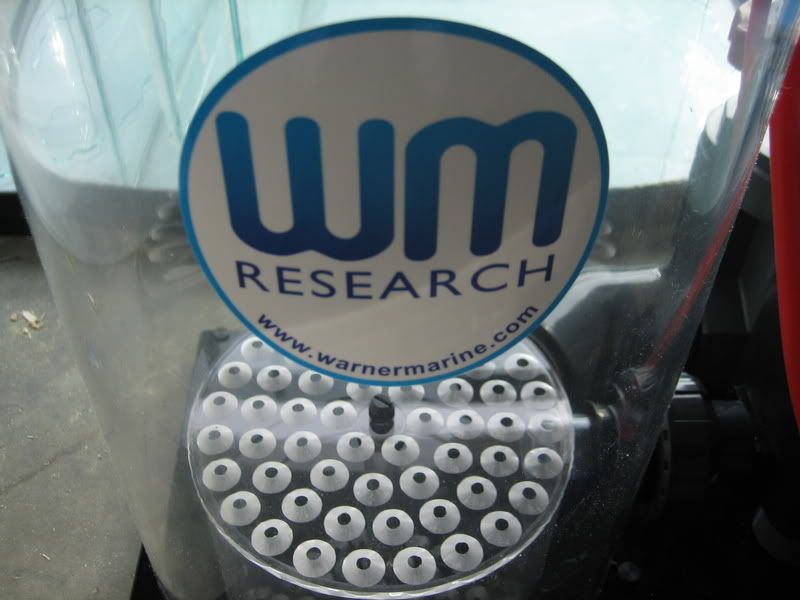

Here are some pics of it in the new sump:









Photobret

Photobret

2
#11
Joined
Nov 16, 2007
Messages
238
Likes
0
Points
0
#11
VEry Cool, I have the same tank sitting empty. Nice idea on the corner overflow. I went external on mine. Look forward to seeing it full to give me some inspiration to get mine going.

R

Reefer08

Member
#13
Joined
May 12, 2008
Messages
1,839
Likes
8
Points
38
Location
Diamond Bar
#13
Almost done with the canopy. I made a light rail so that I can slide my lumenbright right to left etc. The reflector hooks onto those black rings. I used 3/4th inch conduct piping.


R

Reefer08

Member
#14
Joined
May 12, 2008
Messages
1,839
Likes
8
Points
38
Location
Diamond Bar
#14

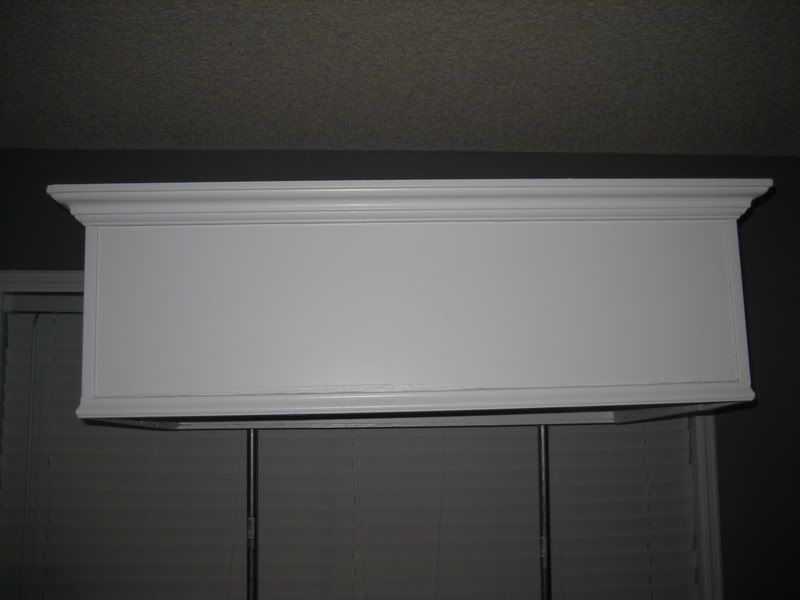

Here is a picture of my floating canopy. Its a lil high in the picture on the pipes but I lowered it about 1 foot. It sits about 6 inches above the tank. Enough room for me to put my arm in the tank. Im having trouble getting the T5's installed, its a tight fit!! But ill manage to make them fit.


R

Reefer08

Member
#19
Joined
May 12, 2008
Messages
1,839
Likes
8
Points
38
Location
Diamond Bar
#19
Thanks for the compliments! I spray painted the 2 poles white with rustoleum spray paint. Im still working on the T5 wiring, all the wires are too short so I had to cut and splice them to longer 18 gauge wiring to connect. All wires will go through the poles.



socalireefer - No I don't build stands for others. This was my first stand build and first time ever doing woodworking.
